CATCAN SMARTSERVO SS-14+ 規格說明

CATCAN SMARTSERVO SS-14+



Material of housing：Plastic with metal heat sink.

Material of gear set：Aluminum, copper and Carbonate Gear

Dimension:40.5 x 20x 44（mm）

Weight: 50g

Ball bearing：2

Servo horn : T-type and cross-disk.

Working voltage：5.4V – 7.5V

Temperature sensing range：-40°C - +125°C

D/A resolution：1024

Operation range: -75ﾟ~75ﾟ

Communication interface： I²C

I²C frequency：100KHz - 400KHz

Torque：14.6Kg/cm at 6V

Speed: variable

Built-in sensors：voltage sensor、current sensor、temperature sensor、torque and speed sensors.

Co-Axis fixture：One on the bottom side

PID parameter：Integrated adjustable PID controller.

Readable data/parameter：servo address、device type、voltage、loading current、temperature、current position、target position、angular travel speed、out put power status、PID parameters

Configurable parameters：servo address、target position、angular travel speed、PID parameter、group control Nr、power out put level、reset

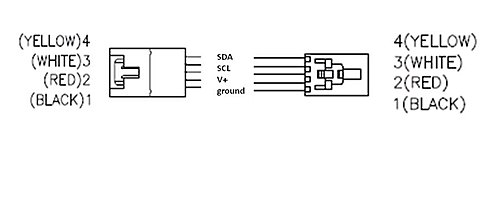

Pin out
